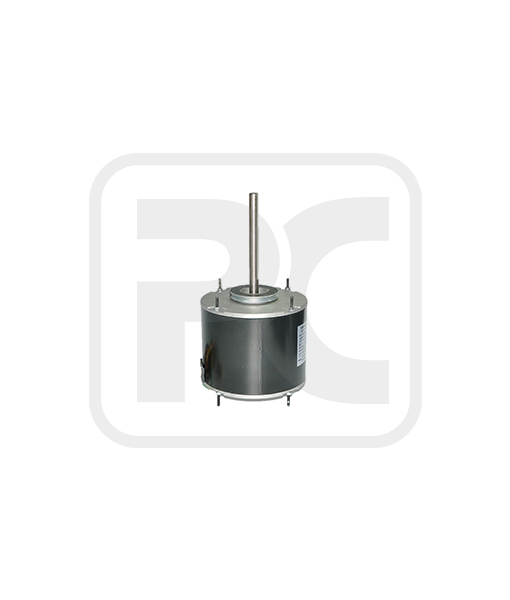

115V 120W Variable Speed Condenser Fan Motor Reversible Rotation
Product application:
Condensers, window type air conditioner, fresh air ventilation system
Product features:
1. Use NSK low noise high quality rolling bearing.
2. Nickel plating for shaft, electrophoretic coating for enclosure.
3. Reasonable structure, high efficiency, low temperature rise, low noise, small vibration.
Product specification:
| Model Number | Voltage
/V |
Frequency
/Hz |
Power | Speed
/RPM |
Rotation | Capacitor
/MDF/VAC |
| YDK140-120-6A | 208-230 | 60 | 1/6HP | 1075/2 SPD | REVERSIBLE | 5/370 |
| YDK140-120-6A5 | 208-230 | 60 | 1/6HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-120-6A6 | 208-230 | 60 | 1/6HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-120-6A7 | 115 | 60 | 1/6HP | 1075/3 SPD | REVERSIBLE | 5/370 |
| YDK140-120-6A8 | 115 | 60 | 1/6HP | 1075/3 SPD | REVERSIBLE | 5/370 |
| YDK140-150-6A | 208-230 | 60 | 1/5HP | 1075/2 SPD | REVERSIBLE | 5/370 |
| YDK140-150-6A2 | 220-240 | 50 | 1/5HP | 900 | CW-SE | 5/370 |
| YDK140-185-6A3 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A6 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A7 | 208-230 | 60 | 1/4HP | 1075/3 SPD | REVERSIBLE | 7.5/370 |
| YDK140-185-6A8 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A9 | 115 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A10 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A11 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-6A12 | 460 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 |
| YDK140-185-4A13 | 220-240 | 50 | 1/4HP | 1050 | REVERSIBLE | 10/370 |
| YDK140-185-4A15 | 208-230 | 60 | 1/4HP | 1625 | REVERSIBLE | 5/370 |
| YDK140-185-4A16 | 115 | 60 | 1/4HP | 1625 | REVERSIBLE | 5/370 |
| YDK140-245-6A2 | 208-230 | 60 | 1/3HP | 1075/3 SPD | REVERSIBLE | 7.5/370 |
| YDK140-245-6A3 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 |
| YDK140-245-6A4 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 |
| YDK140-245-6A9 | 208-230 | 60 | 1/3HP | 1075/3 SPD | REVERSIBLE | 7.5/370 |
| YDK140-245-6A10 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 |
