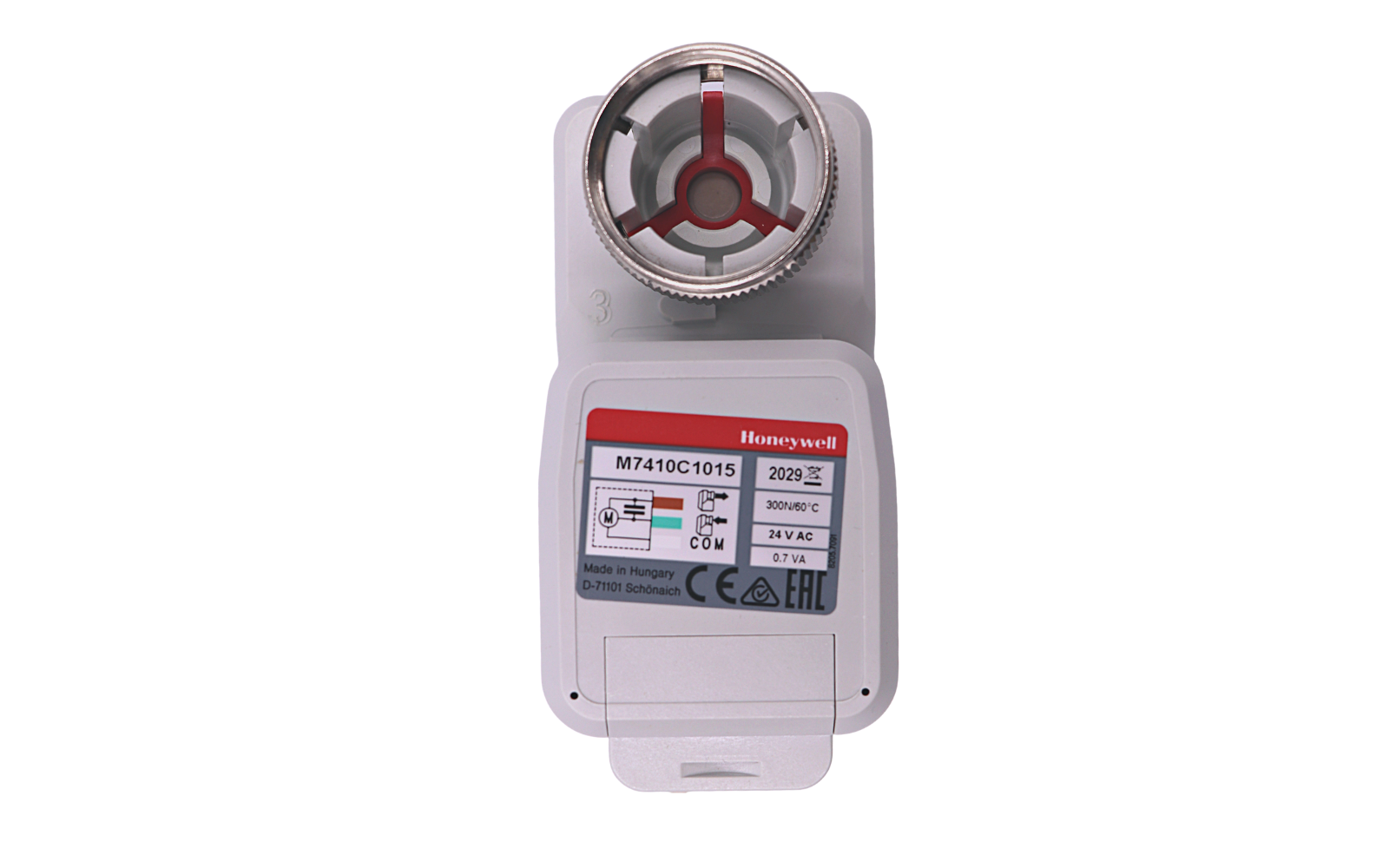

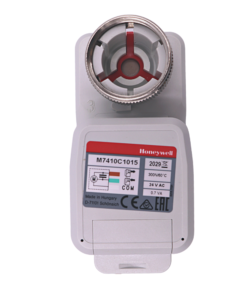

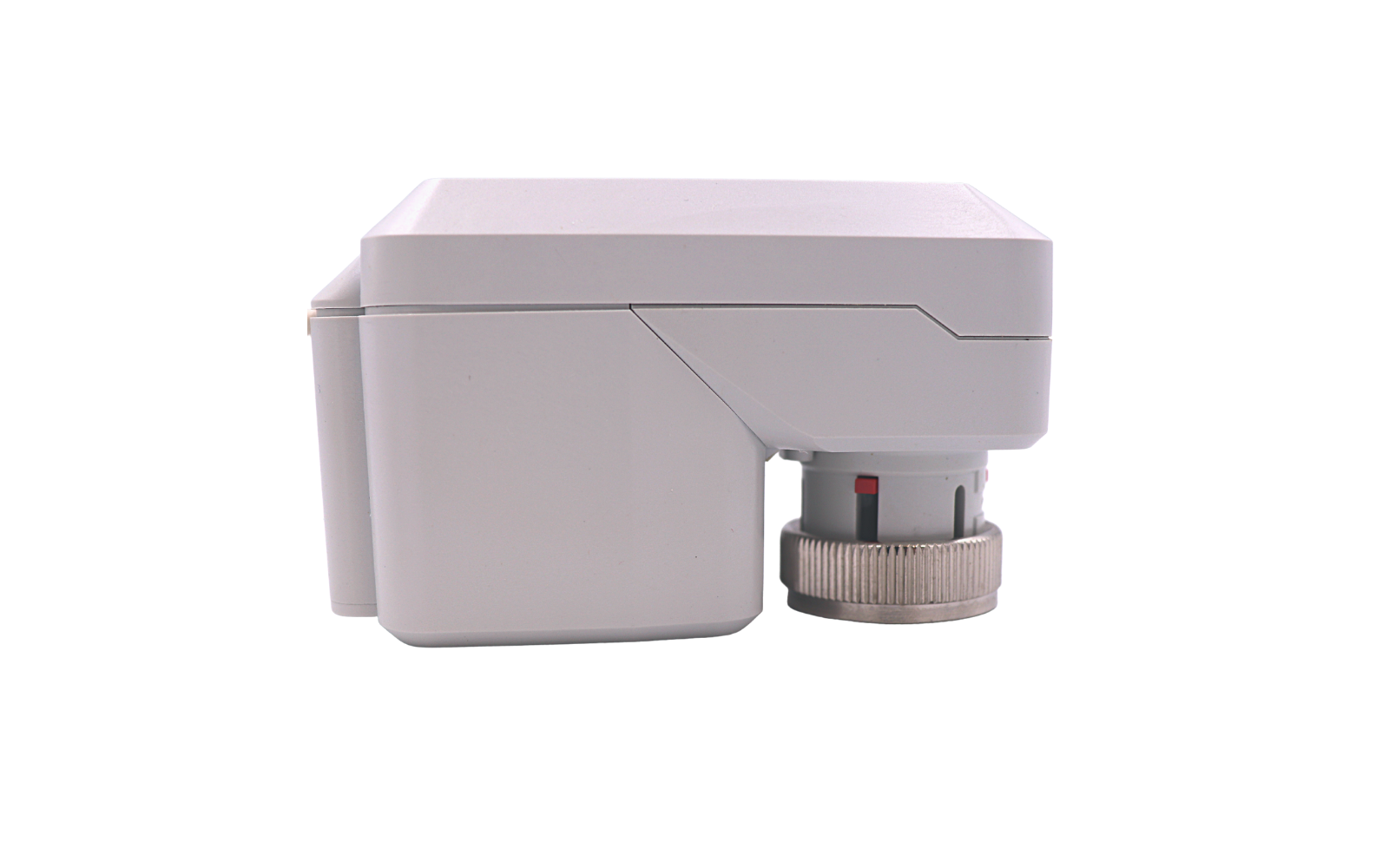

Honeywell M7410C1015 Linear Actuator
- Position display with a red plastic indicator
- Medium temperature 120 ° C
- IP 43 protection
- Supply voltage 24 VAC
- Shaft force 300 N
- Stroke 6.5 mm
- 3-point input signal
- Running time 2.5 min
- Approved according to DIN EN 14597 in combination with suitable Honeywell valves
for valves series: V5822 / 23, V5832 / 33
Honeywell M7410C1015 Linear actuator with 3-point control is suitable for control with a stroke of 6.5 mm and a force of 300 N. They can be used in fan-coil and induction units, for zone control and are also suitable for heaters and aftercoolers.
Honeywell controllers can be connected to the actuator, which monitors the exact position of the valve thanks to a pulse counter. These move the actuator from one position to another, so the actuator does not require limit switches or a feedback potentiometer.
