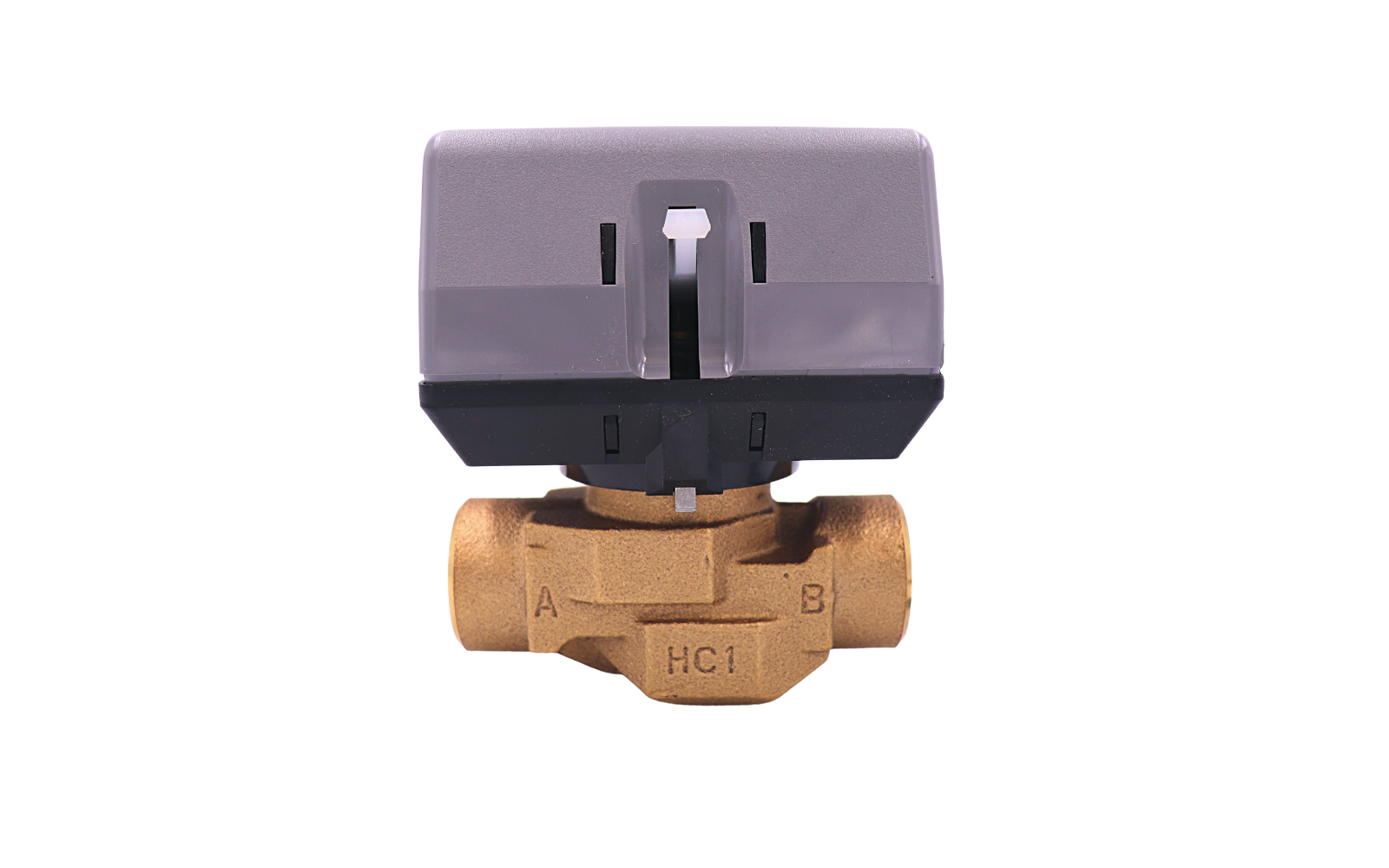

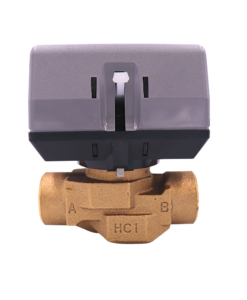

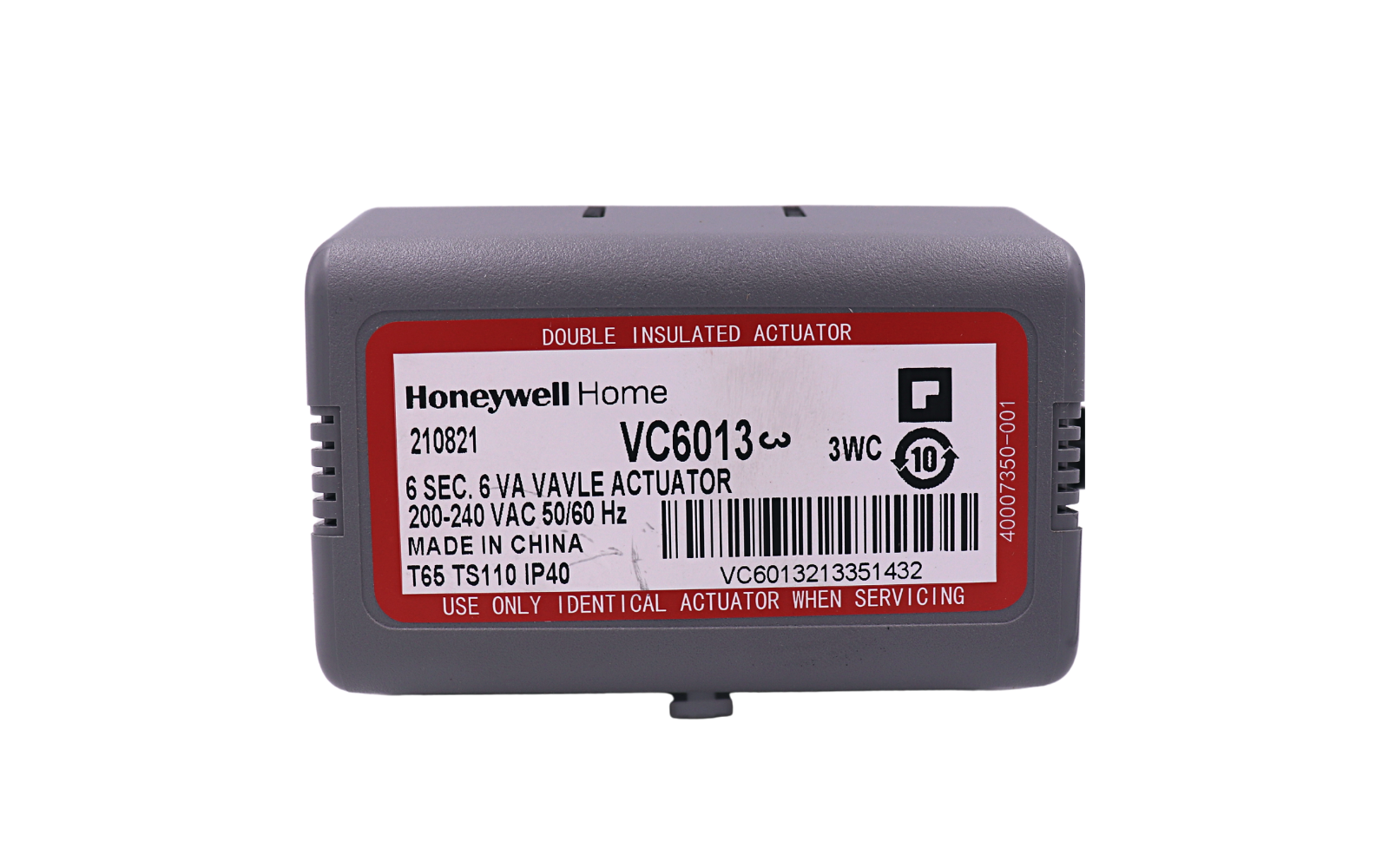

Honeywell VC6013AP1000T 1in 2-Way Valve Actuator with Cable

Product Specifications Maximum Safe Operating Pressure (psi) 300 psi Maximum Safe Operating Pressure (kPa) 2068 kPa (20 Bar) Approvals, Canadian Standards Association CSA CertifiedEnclosureIP40TimingWhen used with VC series Actuator-On/Off models with 6 seconds Ambient Temperature Range (F) 32 F to 150 F Ambient Temperature Range (C) 0 C to 65 C Body Pattern Two – way Pipe Size (inch) 1 in. Pipe Size (DN) DN25Fluid Temperature (C) 1 C to 95 C Fluid Temperature (F) 34 F to 203 F Maximum Differential Pressure Ratings (Close-off) (psi) 60 psi Maximum Differential Pressure Ratings (Close-off) (kPa) 414 kPa (4 bar) Capacity (CVS) 9.0 CVS Capacity (Kev) 7.7 kgs. Valve Action Stem up to close A port Valve Type, Cartridge Cage Valve Controlled Fluid Chilled or hot water with up to 60% Glycol Materials (Body) Bronze Materials (Seat) EPDM O-ring seals on Noryl piston Materials (Stem) Stainless Steel Materials (Cartridge) Ryton, Noryl engineering plastic Flow Characteristic Quick-Open Actuation Two-position 230V SPDT control Stem Travel (in. ) 0.4 in, Stem Travel (mm) 10 mm Compatible with: Air Conditioners and Coolers Brand: Honeywell.
