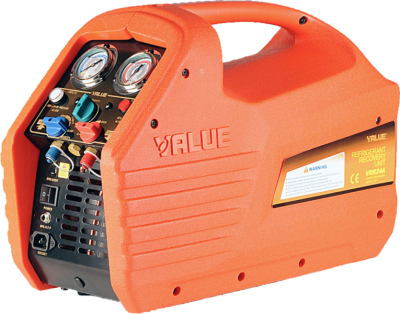

Value Recovery Unit VRR24A
A refrigerant recovery unit is used for the recovery of refrigerant HFC and HCFC.
The main features:
- rapid recovery of refrigerant
- high efficiency
- equipped with a high and low-pressure gauge
- manual reset
- one knob for easy operation
- the function of turned off by reaching 80% filling the bottle of refrigerant
Technical data
| Refrigerants: Category III | R-12, R-134a, R-401C, R-500 |
| Refrigerants: Category IV | R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R-509 |
| Refrigerants: Category V | R-402A, R-404A, R-407A,R-407B, R-410A, R-507 |
| Power supply | 230/50 V/Hz |
| Power | 1 KM |
| Motor speed | 1450 rpm |
| Maximum current draw | 5 A |
| Compressor | Oil-less, air-cooled, piston style |
| Automatic safety shut-off | 38,5/3850 bar/kPa (558 psi) |
| Recovery rate: Category III – Vapor / Liquid / Push/pull | 0,40 / 3,30 / 7,50 kg/min |
| Recovery rate: Category IV – Vapor / Liquid / Push/pull | 0,50 / 3,50 / 8,50 kg/min |
| Recovery rate: Category V – Vapor / Liquid / Push/pull | 0,50 / 3,50 / 9,50 kg/min |
| Operating temperature | 0 ÷ 40 ⁰C |
| Dimensions | 515 x 245 x 360 mm |
| Weight | 17,0 kg |
